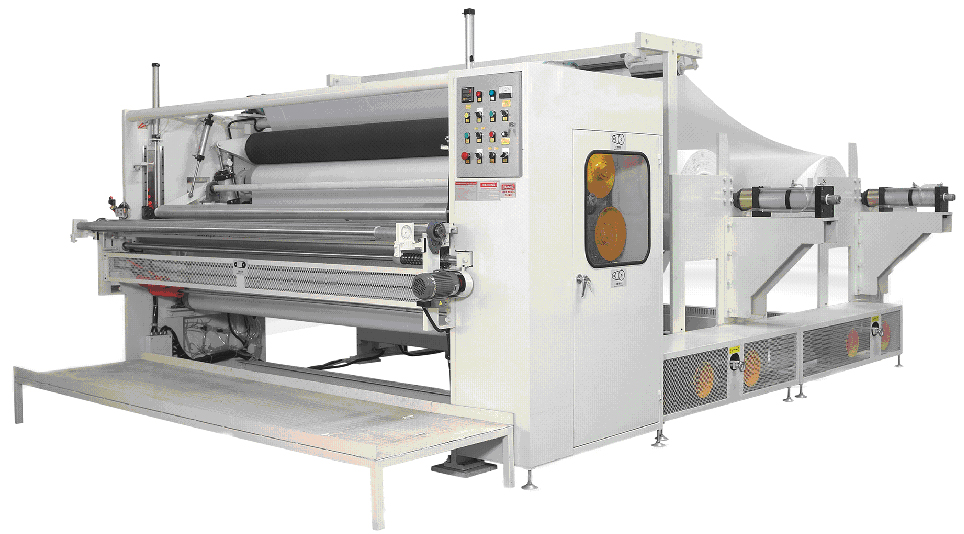

MEC-III (2700) Industrial High-Speed Slitter & Rewinder (2.7m Width)
High-speed slitter and rewinder was developed to produce toll towel, it has reached the international advanced level, and is the perfect solution for the converter who needs smooth slitting ends and high efficiency.
Features:

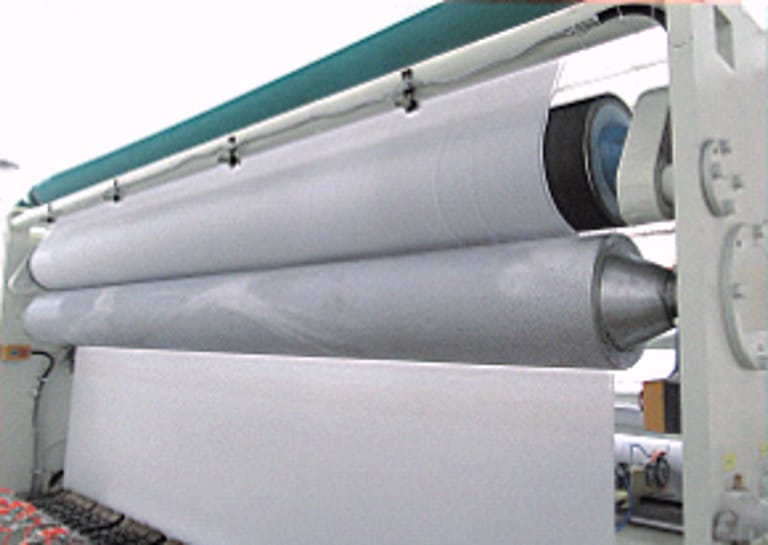

1 Dual-role wide belt ensures stable paper feeding.
2 Auto brake and stop while paper broken.

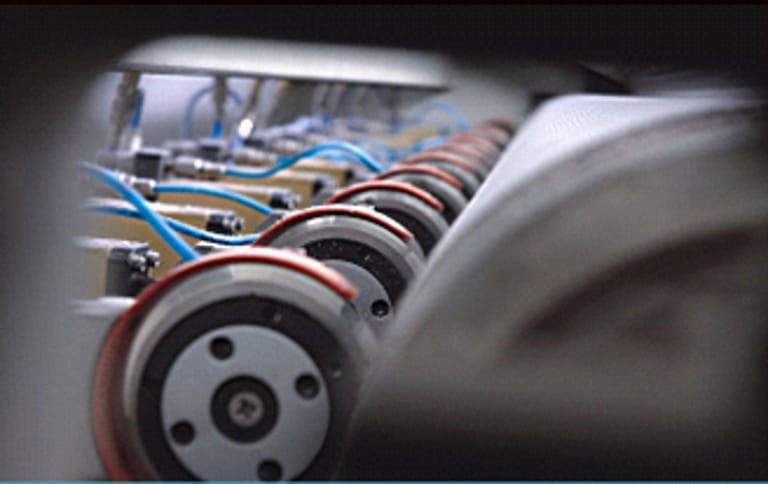

3 Independent pneumatic slitting blades, auto contact with and separate from the bottom slitting roller.
4 Timing belt drive, high-speed running with low noise.
5 Capable of slitting tissue paper and paper towel in range of 13-48g/m2
Technical specification
1. Parent roll | (1) Parent roll width/dia.: Max.2700mm/1800mm; (2) Parent roll core dia.: 3", 5", 7", 10", 12"; |

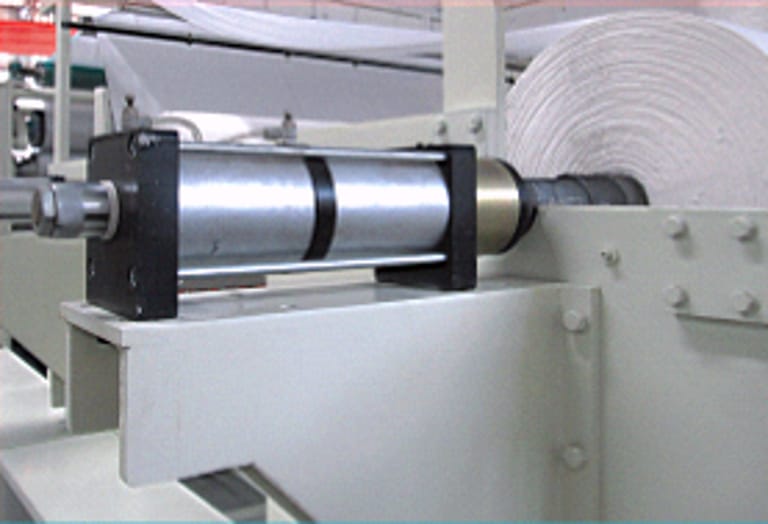

2.Unwinder | （1） 2 sets unwinders, hydraulic control of the parent roll position; （2）Equipped with the adaptors to suit to different cores; （3） Flat belt paper feeding; (belt width:min.180mm, belt thickness: min. 3mm); （3） Pneumatic control of the belt； （4） Equipped with one set of banana roll to prevent wrinkles. (5) The parent roll loading will be done by customer’s crane; |
3. Embosser | （1）Equipped with one set of steel to rubber embosser; (pattern provided by the buyer); （2）Pneumatic control of the embossing pressure； |
4. Equipped with one set edge embossing system; | |
6.Rewinding | （1） Roller width：2800mm; （2） Product dia.:Max.φ350㎜, min. φ200㎜ （3） Slittingwidth: 3.5" and 7.75"； （4）Slitting unit: 0.25"，Slitters adopts pneumatic control type (31 sets)； （5）Equipped with automatic paper tail cutting and gluing system; （6）The gluing tank capacity is 25kg, the glue applying is adjustable, PLC control; Shaft diameter: 51.1mm, 89.2mm; |
7. Control | （1） Equipped with inverter speed control; （6） Operting speed: 160-200m/min（design speed：250m/min);（Working efficiency: 6000 rolls/8 hours（roll size: width: 3.5", length:200m）； |
