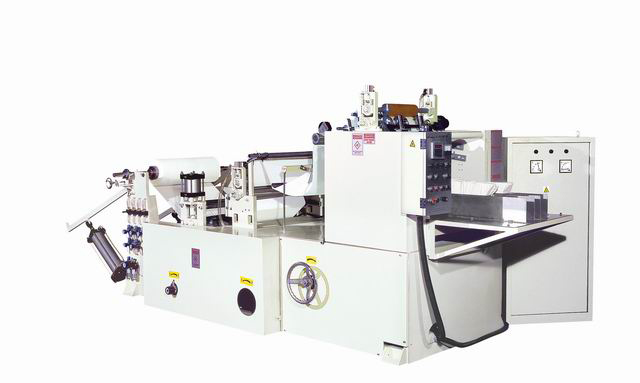

High-Speed Vacuum C-Fold Hand Towel Machine

1.      Parent roll size: φ(800-1500)mm×660mm

2.      Parent roll material: 38-45 gsm single ply towel, or 18-20gsm two ply towel;

3.      Dia. of the core of the parent roll: 76mm;

4.      One set unwinder, flat belt paper feeding, pneumatic cylinder control;

5.      Hand wheel tension control;

6.      Pneumatic parent roll loading system;

7.      Parent roll horizontal position adjusting device;

8.      Parent roll slitting function to make 660mm into 330 + 330mm;

9.      One set steel to steel embosser (pattern as per customer’s requirement)

10.  Pneumatic control of the pressure of embossing;

11.  Spiral blades cutting device, cut off size is fixed;

12.  Automatic counting function;

13.  Vacuum suction “C” folding;

14.  Product size: (330 x cut off size)mm +/2mm; Folded size: (95 x cut off size)mm +/-2mm;

15.  Operating speed: 800-1000 sheets/min;

16.  Static removing device;

17.  Main machine frequency inverter speed control;

18.  Emergency stop system and stop upon paper break system;

19.  Power needed: AC 380V, 50Hz; 5.5 kw (main machine) 11 kw (vacuum pump)

20.  Air pressure needed: 0.5 Mpa  (prepared by the customer)
