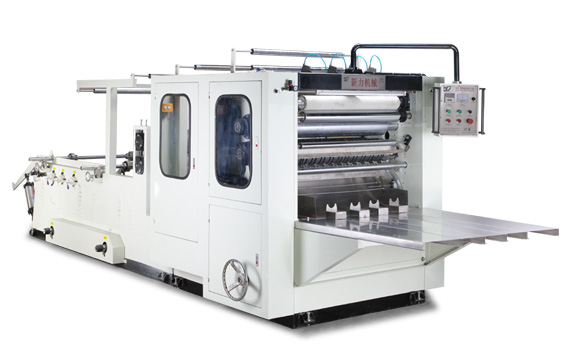

High-Speed Commercial Interfolder - Up to 6,000 Sheets/Min Output

1 It adopts advanced PLC computer programmed controlling. With operation interface and variable frequency speed control system and automatic right & left counter. With stable running, high speed folding trimness and high efficiency.

2 The cutting width can be chosen freely from 100-210mm

3 According to the requirement of customers’, embossing unit and edge embossing unit are available.

Model: BP-4T/ BP-5T/ BP-6T

Max. width of parent roll:840mm/1050mm/1260mm

Max. dia, of parent roll:1200mm(other size to be specified)

Size of finished product(vertical cutting direction):100-210mm arbitrary cutting (to be specified)

Size of finished product(folding direction):210mm,200mm,188mm,175mm(to be specified)

Processing Capacity: 0-1000sheets/minx4 /0-1000sheets/minx5/ 0-1000sheets/minx6

Embossing: Steel to steel, steel to rubber, steel to paper woolen roller,steel to felted roller, pnwumatic wmbossing( to be ordered)

Edge-embossing: Steel to steel, Independent pneumatic control(to be ordered)

Required power:Variable frequency speed regulating5.5-7.5Kw/380V/50Hz(Other voltage to be specified)

Required power:≥0.6 Mpa(supplied by user)

Programming control:PLC

Vacuum system: One 15 Kw Vacuum pump,one 18.5 Kw rots fan

Parameter setting:HMI operation interface
