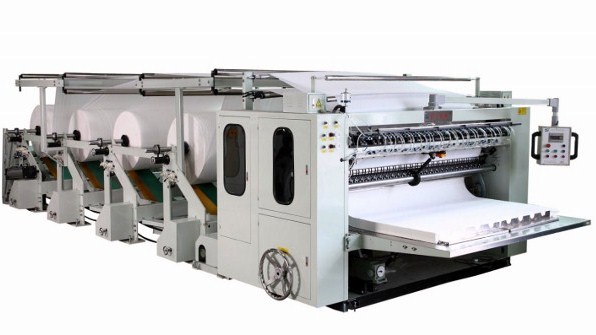

BP-T Series: Multi-Lane High-Speed Facial Tissue Interfolding System

1 It adopts advanced PLC computer programmed controlling. With operation interface and variable frequency speed control system and automatic right & left counter. With stable running, high speed folding trimness and high efficiency.

2 The cutting width can be chosen freely from 100-210mm

3 According to the requirement of customers’, embossing unit and edge embossing unit are available.

Model: BP-7T/ BP-8T/ BP-9T/ BP-10T

Max. width of parent roll:1400mm/1680mm/1850mm/2050mm

Max. dia, of parent roll:1100mm(other size to be specified)

Size of finished product(vertical cutting direction):100-210mm arbitrary cutting (to be specified)

Size of finished product(folding direction):210mm,200mm,188mm(to be specified)

Processing Capacity: 0-1000sheets/minx7 /0-1000sheets/minx8/ 0-1000sheets/minx9/ 0-1000sheets /minx10

Embossing: Steel to steel, steel to rubber, steel to paper woolen roller,steel to felted roller, pnwumatic wmbossing( to be ordered)

Edge-embossing: Steel to steel, Independent pneumatic control(to be ordered)

Required power:Variable frequency speed regulating7.5-11Kw/380V/50Hz(Other voltage to be specified)

Required power:≥0.6 Mpa(supplied by user)

Programming control:PLC

Vacuum system: One 22-30 Kw rots fan (depend on the specification)

Paper unwinding stand:4 stands ( to be ordered)
