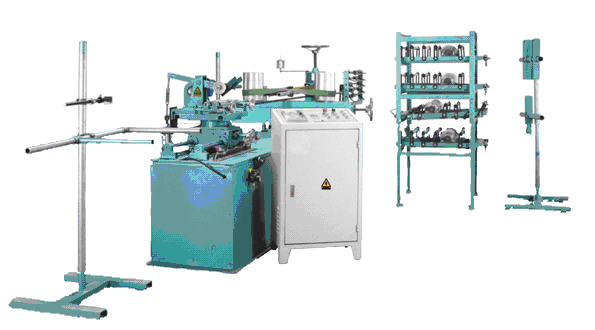

BP-CM Series: Automatic Multi-Layer Paper Core Making Machine

Core making machine

-        3 or 7 Layers

-        Max. thickness of the core: 5mm

-        Core Diameter: from 35mm to 76mm (can change the axes)

-        Free of 1Axe for Rewinding the Core of diameter

-        Minimum cutting length 1200 mm.

-        The core cutting length is determined by the Photocell automatically

-        Movement transmission of the machine by metal chains

-        Protection cover on cutting blade

-        Rotating cutting disc blade

-        Cutting trigger by photocell

-        Production speed: 20 m. / min

-        Glue port with double cleaner
