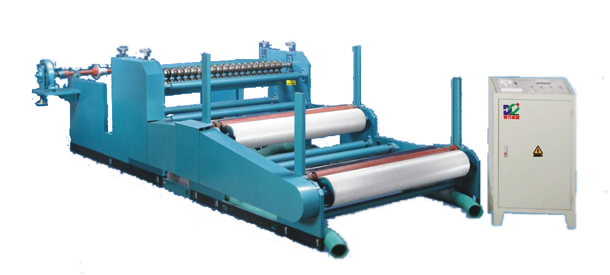

BP- C-1092/1575 Kraft Paper Slitting Machine

1 This machine is mainly used to slit and rewind the white-coated paper, Kraft paper, corrugated board, sand-coated paper and all kinds of packaging paper. 2 It can be used to slit and rewind the jumbo rolls into desired width, ready for making the cores.

3 Its features of reasonable design, good performance, stable running, simple operation and high speed running, suitable for the paper mills, tissue converting plants and core making plants for the production of cores.

4 It can be equipped with 1-2 colors printing.

Model: BP- C-1092/1575

Max. Width. of parent roll:1350mm/1750mm

Max. dia. of parent roll:1100mm (other size to be specified)

Inner dia. of parent roll core:3” (76.2mm) (other size to be specified)

Processing capacity: 0-100m/min

Outer dia. of finished product: 600-900mm (other size to be specified)

Product width:≥60mm

Outer dia. of finished paper core: 3” (76.2mm) (other size to be specified)

Required power: electromagnetic speed-regulation motor 4-5.5 Kw / 380V/50Hz (other voltage to be specified)

Wasted edge: air absorption

Paper unwinding stand:1 stand
