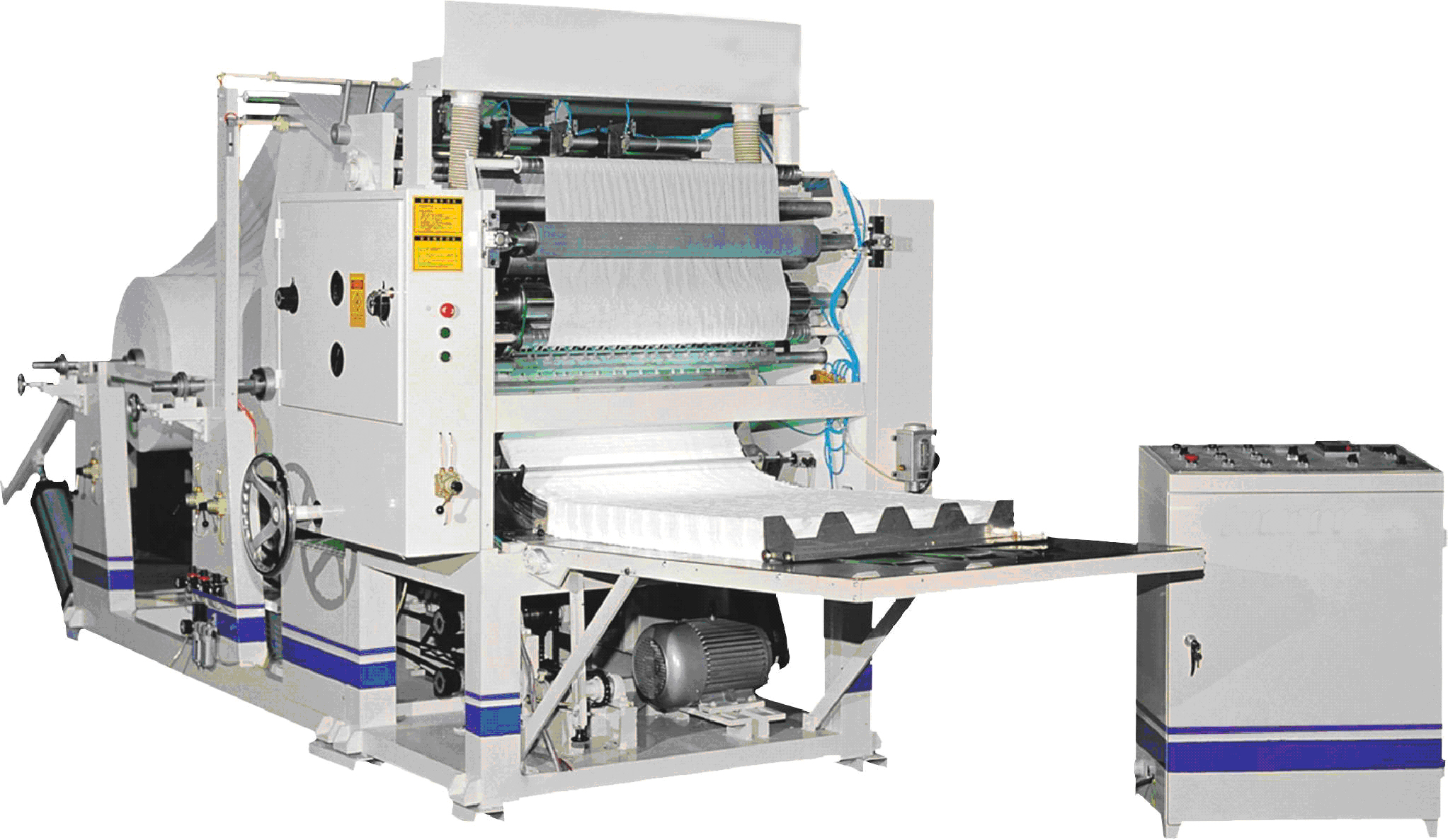

BP-4L High-Speed V-Fold Hand Towel Interfolder (2400 Sheets/Min)

1.       Parent roll

(1)    Basis weight: 13~40g/m2 single ply tissue,

(2)    Diameter: <= 1200mm;

(3)    Paper core dia.: 76mm;

(4)    Width: Max. 1050mm;

2.       Product specification

(1)    Horizontal cutting length: 230mm;

(2)    Vertical cutting length: 230mm (adjustable);

(3)    Equipped with 4 slitting cutter;

(4)    Embossing: the pattern will be provided by the customer;

3.       Unwinding section

(1)    Two parent roll shafts which can clip the paper core firmly;

(2)    Equipped with devicse which can adjust the position of the parent rolls;

(3)    Tension control system can adjust the tension of the parent paper;

(4)    Pneumatic parent roll loading system;

(5)    The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop;

(6)    All the pneumatic device’s air press are adjustable;

4.       Embossing unit;

(1)    Steel to steel embossing ( two sets);

(2)    The steel rollers were plated with hard chrome, the embossing is very clear;

(3)    Tension adjusting device;

(4)    Broken, winding can effect the automatic stop function;

5. Control section;

(1)    Automatic counting system;

(2)    Equipped with inverter speed control;

(3)    Operating speed: 1600-2400 sheets/min (4 lanes)

(4)    Power supply: AC 380V/50Hz; 7.5 KW (main machine)

(if the local power supply is different please specify)

6.Equipped with vacuum pump;

7.Air pressure needed: 0.5 Mpa (prepared by the customer)

8.Machine size: 6500 x 1900 x 2200mm;

9.Machine weight: 6500 kg;
