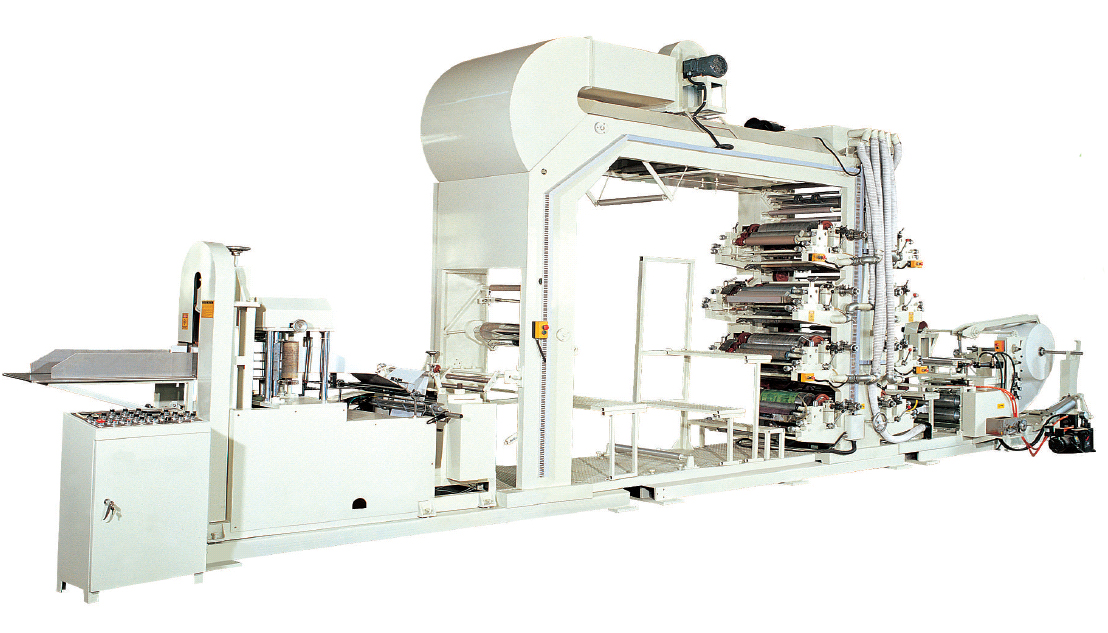

BP-4C Premium: 4-Color Flexo-Printing Napkin Production Machine

1.       Parent roll:      13-23g/m2 two plies wood pulp tissue;

2.       Parent roll size:   Φ1200 x 330mm;

3.       Unfolded size:   330 x 330mm;

4.       Folded size:     165 x 165+- 2mm, 1/4 fold,

5.  Parent roll core:   Φ76mm；

6.       Clearance between folding roll and traction roll is adjustable；

7.       Ring-shape band saw cutting；

Paper feeding

(1) One feeding stand；wide flat belt feeding, buffering cylinder control;

(2) Tension adjusting device；

(3)  Pneumatic loading jumbo roll;

One set steel to paper embosser;

(1)    Equipped with stop as broken device and tension adjusting device;

(2)    The embosser equipped with heating device and the steel roller are plated with chrome;

Printing unit:

(1)    Four-color flexo-printing

(2)    Printing roller can be finely adjusted in the horizontal direction;

(3)    The driving system of the printing rollers can be separated from the machine;

(4)    Stainless Steel drawer type oil tank, easy to clean;

(5)    Equipped with anilox roller;

(6)    Equipped with printing plate position ajdusting device;

(7)    Stop as broken, tension adjusting device, printing rollers are plated by chrome;

(8)    It can also produce the napkin without embossing;

8.       Equipped with static removing device;

9.       Equipped with automatic web control device;

10.   Folding unit:

(1)    Folding roller and pull roller have distance, the tension is easy to adjust;

(2)    Folding board and clamping board are easy to replace;

(3)    Cam adopts good design, low noise.

(4)    Function of counting (1-999);

11.   Cutting unit:

(1)    Adopts ringlike band saw;

(2)    Grinding system, grinding wheel is reliable;

(3)    Equipped with protection shield;

12.   Inverter speed control;

Production capability: 400-500sheets/min(speed while printing:200-300sheets/min);

13.   Power supply: Three- phase  AC 380 V  50 Hz;

14.   Air pressure needed: 0.5 Mpa;
