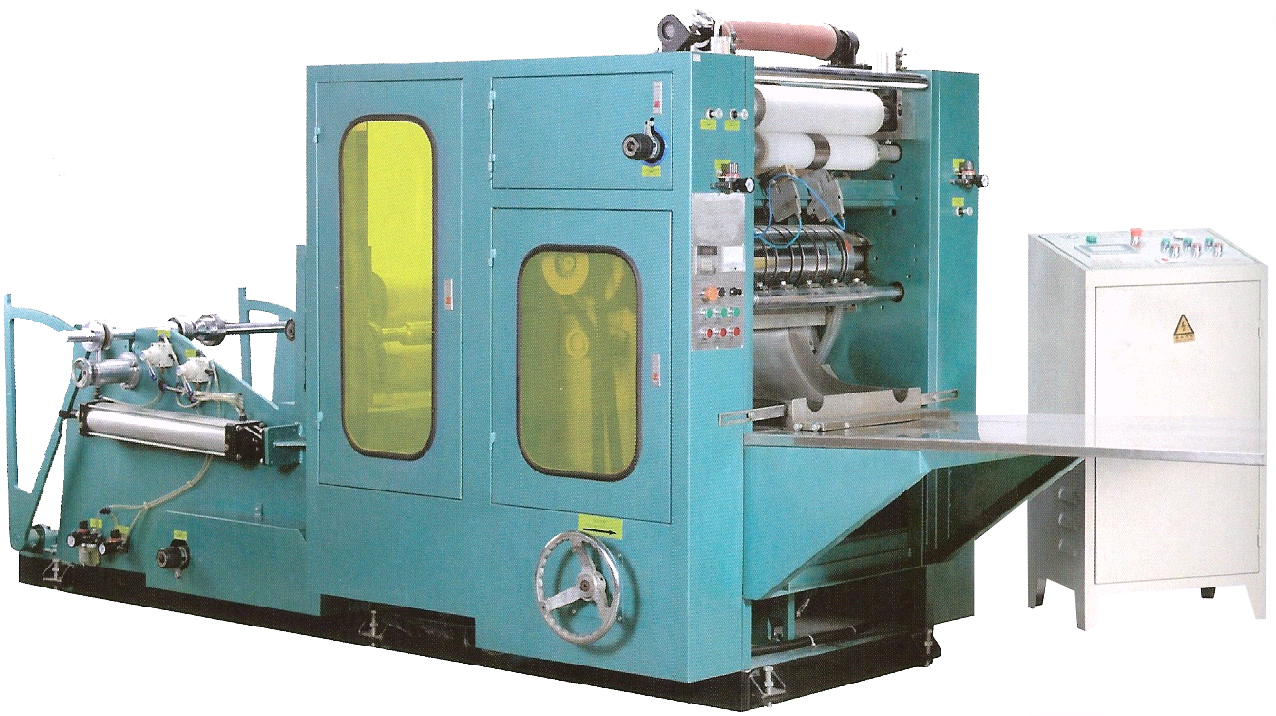

BP-3Z-2L: Patented Compact High-Speed N-Fold Towel Machine

1 This machine is the patent product of our company.

2 The product is mainly used in hotels. offices and kitchens for drying hands

3 It adopts advanced technology of PLC computer programming, operation interface and variable frequency speed regulating, automatic counting, steel-to-steel embossing.

4 It is running in a high speed, folding trimness, high producing efficiency. According to the requirement of customers’, the sizes can be chosen from 2L,3L and 5L.

Model: BP-3Z-3L

Max. width of parent roll: 480mm

Max. Dia. of parent roll:1200mm (other size to be specified)

Open size of finished product:230x230mm

Folded size of finished product:80x230mm

Processing capacity:0-800 sheets/min x 2

Embossing: steel to steel

Required power: Variable frequency speed, regulating 5.5 Kw / 380V / 50Hz (other voltage to be specified)

Required air pressure: ≥0.6 Mpa (Supplied by user)

Vacuum system: one 7.5 Kw Rots Fan
