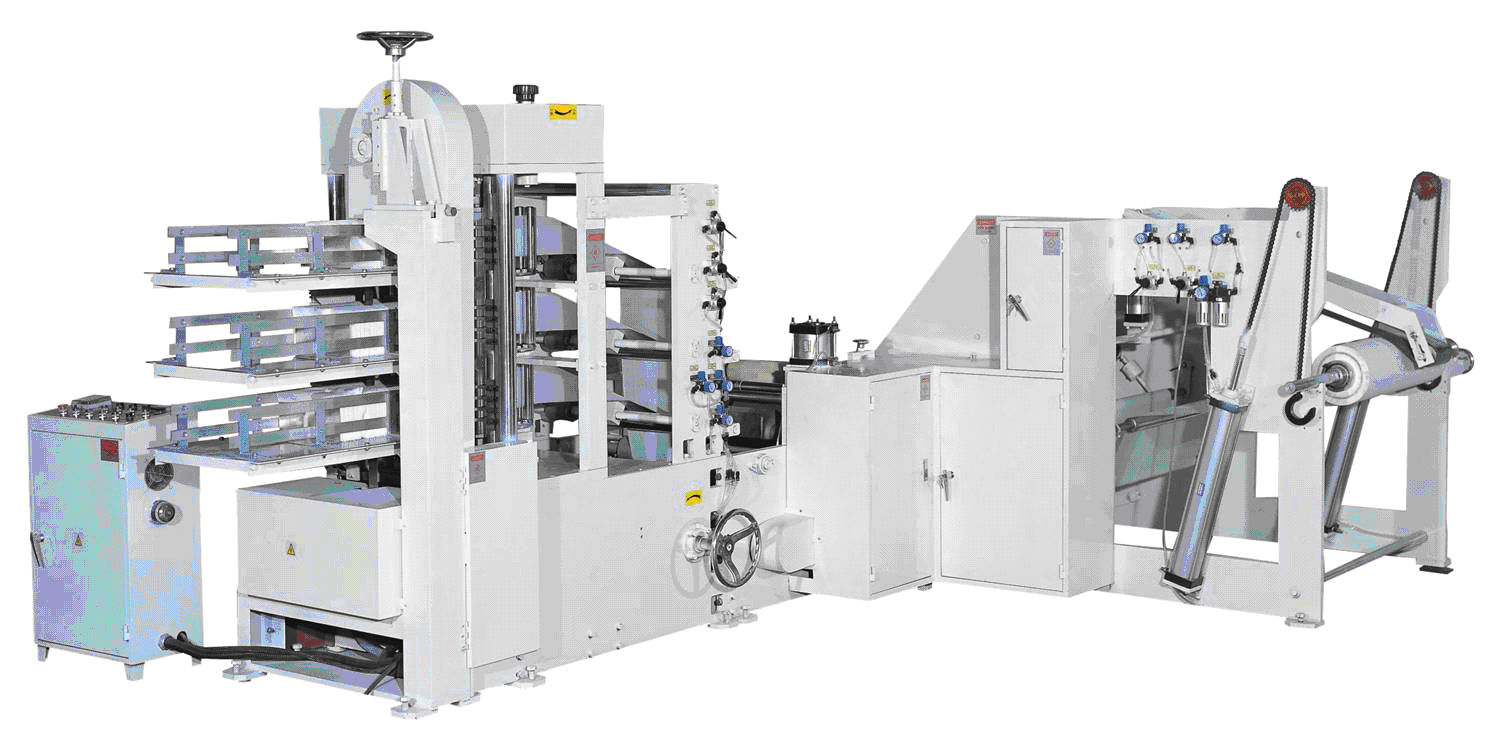

BP-300 High-Speed Napkin Machine (2100 Sheets/Min) with Full Embossing

1. Parent roll

  (1) Basis weight: 13-20 gsm (2 ply) or 23-25 gsm (1 ply) tissue;

  (2) Parent roll size: dia.1500mm x 900 mm;

  (3) Parent roll core: dia. 76mm;

2. Paper feeding section

(1)   One unwinder, wide flat belt paper feeding, pneumatic cylinder control;

(2)   Tension control device;

(3)   Pneumatic parent roll loading system;

(4)   Vertical slitting device;

3. Equipped with one set steel to steel calender;

4. Embossing section

(1)   One set steel to steel embosser (the pattern needs to be full pattern); Pneumatic pressure control;

(2)   Sensor inspection, automatic stop when paper break function;

5. Folding section

(1)   Product size: 300 x 300 (+/-2mm)

(2)   Folded size: 150 x 150 (+/-2mm) 1/4 fold;

(3)   The distance of Folding roller and drawing roller can be adjusted;

(4)   3 sets folding plate;

(5)   Band saw cutting;

(6)   Speed: 1500-2100 sheets/min

6. Control section

(1)   Frequency inverter speed control;

(2)   Automatic counting function (1-999)

(3)   Grinding device;

(4)   Automatic stop when paper break function;

(5)   Emergency stop function;

(6)   Power: AC 380V, 50Hz; 5.5 KW;

(7)   Air pressure: 0.5 Mpa  (prepared by the customer)
