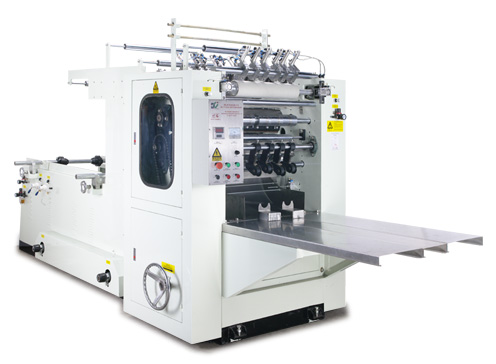

BP-2T Series: Compact Dual-Lane Facial Tissue Interfolder

1 It holds the folding paper with vacuum system and xounts by automatic stagger.

2 The whole machine is in a stable running, high speed, folding trimness and high efficiency. The cutting width can be chosen freely from 100-210mm.

3 Embossing unit and edge embossing unit can be chosen depending on the requirement of the customers’

Model: BP-210/2T/ BP-200/2T / BP-185/2T

Max. width of parent roll:504mm

Max. dia, of parent roll:1100mm(other size to be specified)

Open size of finished product:208x(100-210)mm/ 198x(100-210)mm/ 185x(100-210)mm

Folded size of finished product: 105x(100-210)mm/ 100x(100-210)mm/ 94x(100-210)mm

Processing Capacity: 0-800sheets x2/min

Embossing: Steel to steel, steel to rubber, steel to paper woolen roller,steel to felted roller, pnwumatic wmbossing( to be ordered)

Edge-embossing: Steel to steel, Independent pneumatic control(to be ordered)

Required power:Variable frequency speed regulating 3Kw/380V/50Hz(Other voltage to be specified)

Required power:≥0.6 Mpa(supplied by user)

Vacuum system: One 7.5Kw spiral air vacuum pump
