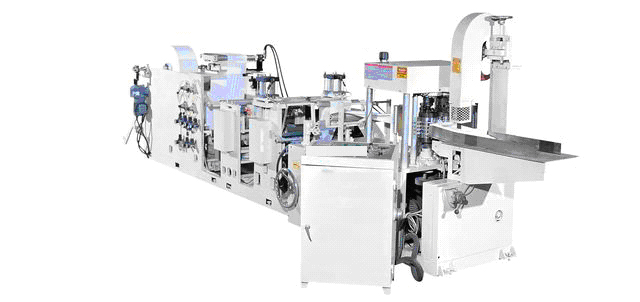

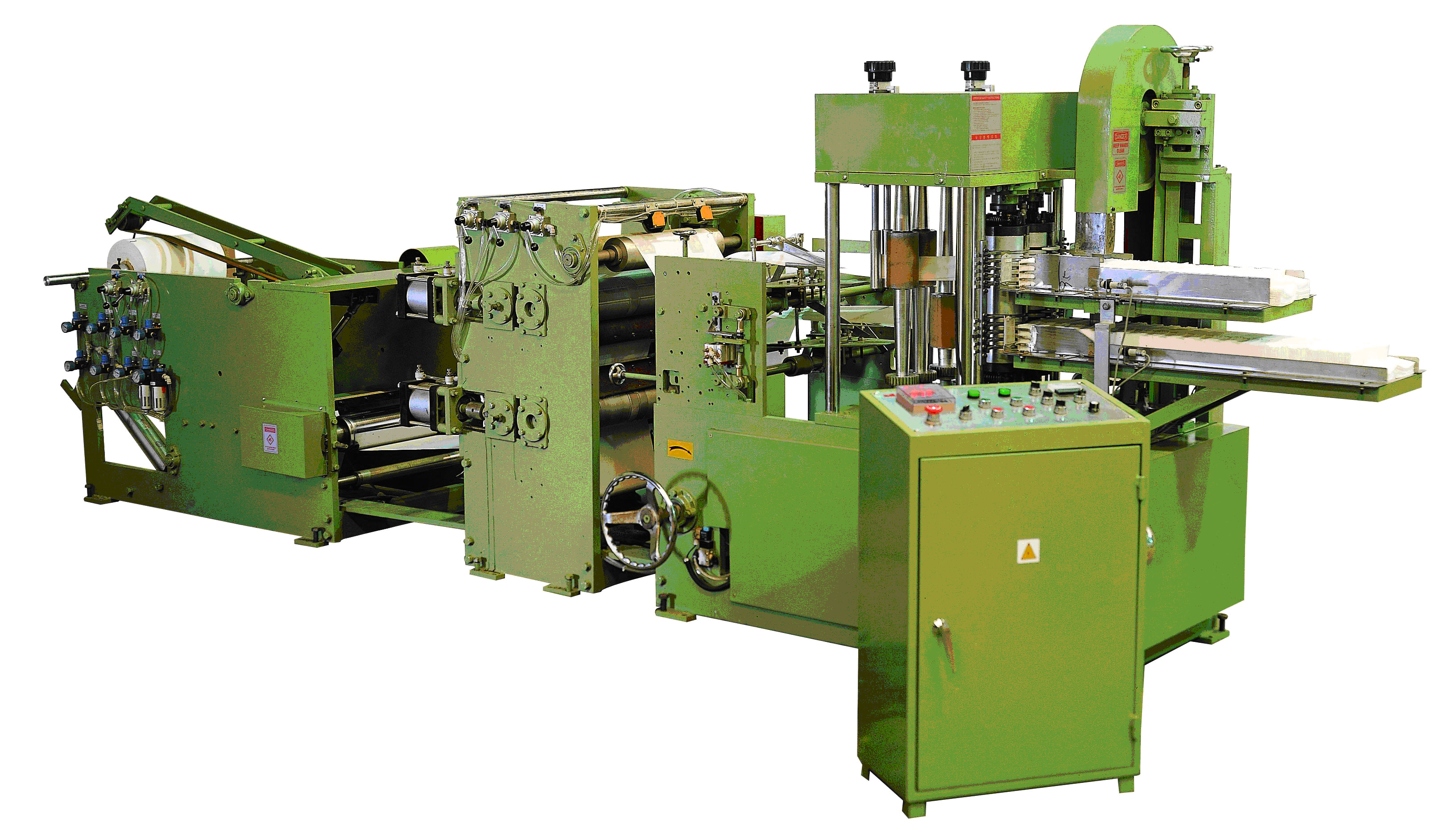

BP-330 Series: High-Speed 2-Color Printing Napkin Machine (1100 Sheets/Min)

1.    Parent roll:      25g/m2 one ply, 16-20 g/m2 two plies wood pulp tissue;

2.    Parent roll size:   Φ1200 x 660mm;

3.    Unfolded size:   330 x 330mm;

4.    Folded size:     165 x 165+- 2mm, 1/4 fold;

5.  Parent roll core:   Φ76mm；

6.    Sync- belt paper delivery, auto paper tension adjusting, the tension can also be adjusted manually;

7.    One parent roll roller to clamp the paper core firmly, the position of the parent roll can be adjusted by a mechanical horizontal moving device, pneumatic parent roll loading and unloading function.

8.    Various pneumatic device, air pressure is adjustable.

9.    Equipped with one set steel to steel calender, the distance of the rollers can be adjusted, the rollers are plated with chrome to improve the smoothness of the paper;

10.  Embossing unit:

(1)   One set steel to paper embosser;

(2)   Equipped with stop as broken device and tension adjusting device;

(3)   The embosser equipped with heating device and the steel roller are plated with chrome;

11.  Printing unit:

(1)   2 colors printing;

(2)   Printing roller can be finely adjusted in the horizontal direction;

(3)   The driving system of the printing rollers can be separated from the machine;

(4)   Stainless Steel drawer type oil tank, easy to clean;

(5)   Equipped with anilox roller;

(6)   Equipped with printing plate position ajdusting device;

(7)   Stop as broken, tension adjusting device, printing rollers are plated by chrome;

(8)   It can also produce the napkin without embossing;

12.  Equipped with static removing device;

13.  Equipped with automatic web control device;

14.  Folding unit:

(1)   Folding roller and pull roller have distance, the tension is easy to adjust;

(2)   Folding board and clamping board are easy to replace;

(3)   Cam adopts good design, low noise.

(4)   Function of counting (1-999);

15.  Cutting unit:

(1)   Adopts ringlike band saw;

(2)   Grinding system, grinding wheel is reliable;

(3)   Equipped with protection shield;

16.  Inverter speed control;

Production capability: 450-550 sheets/min(one deck);900-1100 (two deck)sheets/min-------330x330

17.  Power supply: Three- phase  AC 380 V  50 Hz;

18.  Air pressure needed: 0.5 Mpa;

19.  Machine size: about 5800 x 1300 x 1600mm;

20.  Machine weight: about 1900 kg;

21.  Price: FOB any China port:
