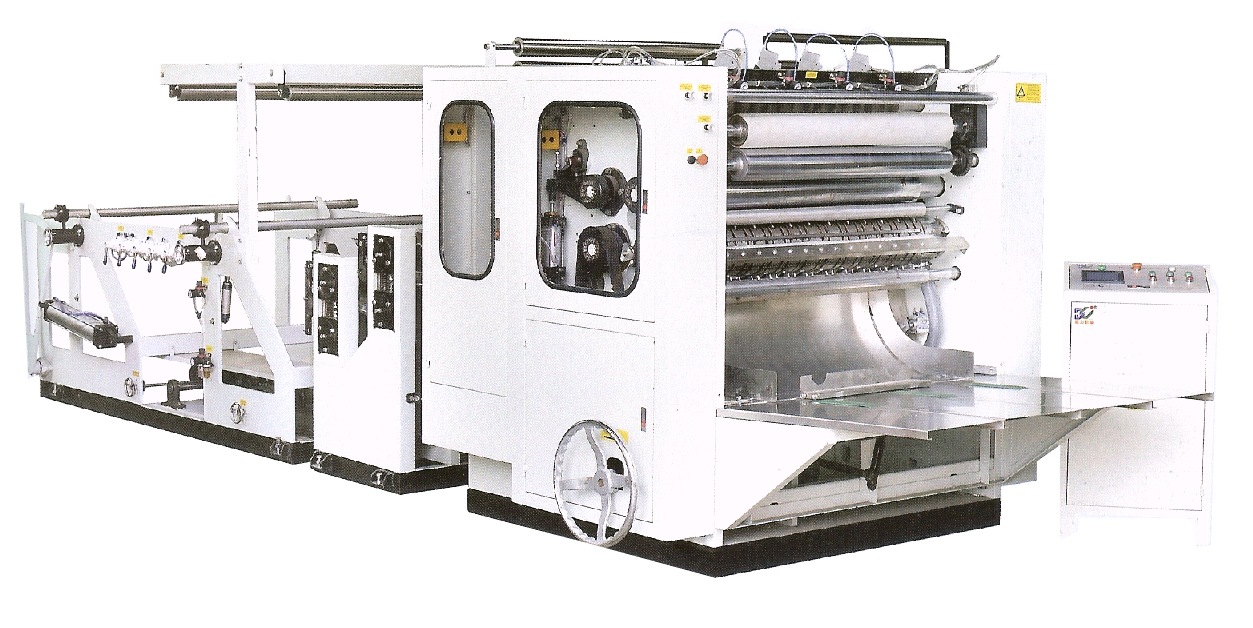

BP-225/260 Series: Patented Timing-Belt Driven V-Fold Interfolder

1 This machine is the patent product of our company.. It adopts the advanced PLC computer programmed, operation interface and variable speed controlling system with automatic right & left counter.

2 The whole machine adopts the compact structure and used the rubber-timing belt to transfer. This machine has a stable running, high speed, folding trimness and high efficiency.

3 According to the requirement of customers’, the sizes can be chosen from 4T,5T..

Model: BP-225-4L/5L; BP-260-4L/5L

Max. width of parent roll: 900mm/1125mm ; 960mm/1200mm

Max. Dia. of parent roll:1200mm (other size to be specified)

Open size of finished product:225x225mm ; 240x260mm

Folded size of finished product: 225x113mm ; 240x130mm

Processing capacity:0-600 sheets/min x 4/5

Embossing: steel to steel

Required power: Variable frequency speed, regulating 5.5 Kw / 380V / 50Hz (other voltage to be specified)

Required air pressure: ≥0.6 Mpa (Supplied by user)

Parameter setting: HMI operation interface

Programming control: PLC

Vacuum system: one 22 Kw Rots Fan
