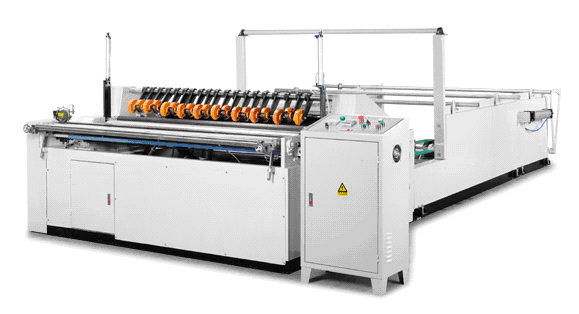

BP-1350 Industrial Small Jumbo Roll Rewinder & Slitter (250m/min)
Features:
1 It is the specialized requirement for producing small jumbo roll paper.
2 It has a reasonable structure and rewinds burliness. The rewinding and slitting are going along in the same time. Pneumatic roll lifting and airshaft are available.
3 Embossing unit, calendar device or foul line embossing requirement can be chosen depending on the requirement of customers.
4 Timing belt drive, high-speed running with low noise.
Technical specification
Max.Width.of raw paper | 1350mm |
Max.dia.of raw paper | 1100mm |
Material of parent roll | 13-50gsm |
Inner dia of raw paper core | 3”(76.2mm) |
Processing capacity | 0-250m/min |
Max.Outer dia of finished product | 400mm |
Width of finshed product | 90-100mm |
Control of finished product | preset parameter |
Perforating | 2 pieces of anvil blades |
Perforating size | 95mm -125mm |
Outer dia. Of finished paper core | 3”(76.2mm) |
Required power | variable frequency speed regulating5.5kw/380v/50hz |
Required air pressure | ≧0.6mpa |
Calender unit | pneumatic calendaring ,steel to rubber |
※paper unwinding stand | 2 stands |
Winding device | air-shaft |
Roll-unloading | pneumatic |
trimming & Sealing | Trimming, Spurting Glue , Sealing in the same time |
