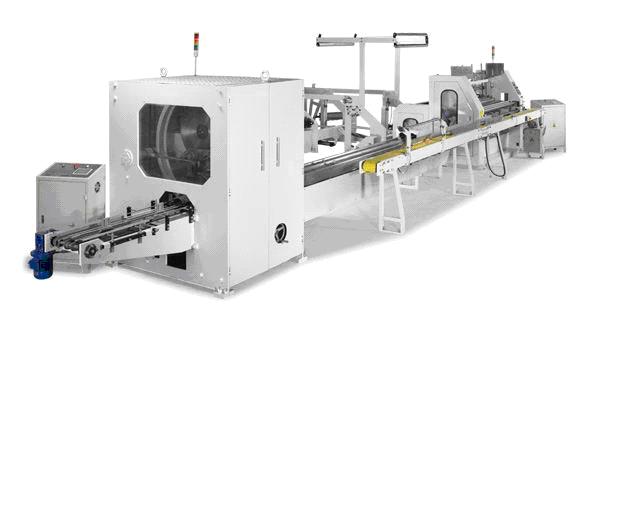

Automatic toilet roll production line

(1) Rewinder

-          Max Parent Roll Width: 1800 mm

-          Parent Roll Outside Diameter: Max 1500 mm

-          Core inside Dia of Parent Roll:  3” (76.2 mm)

-          Max Rewinding Log Diameter: 90 – 125 mm

-          Log Core Diameter: 25 – 50 mm

-          Perforation Length: from 90 to 135 mm (adjustable)

-          Mechanical Speed / Rewinding Speed: 100 – 200 m / min

-          Automatic core feeding, will automatically change logs and unload the finished products.

-          Unwind stand: 2 rolls, with 2 driving flat belt for parent roll, pneumatic roll lifting

-   Equipped with 1 sets steel to paper embosser;

Automatic Tail Sealer

-   Operation interface and Inverter control system

-   PLC computer control system

-   Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case if runs out of paper, cores or any other unforeseen problems.

-   Movement transmission of the machine by timing tension rubber belt;

-   Stop and Jog button control

-   Power requirement：AC 3 phase 380V50Hz

-   Air pressure requirement：0.7Mpa

2) Conveyer system

3) High Speed Log Saw

-          Speed：80-100 cut/min;

-          Paper roll diameter：φ90—120mm;

-          The exit of cutter have 2 transducers；entrance has 1 transducer；the paper routeway have 1 or 2 transducer, to Check up the running of the raw paper roll;
