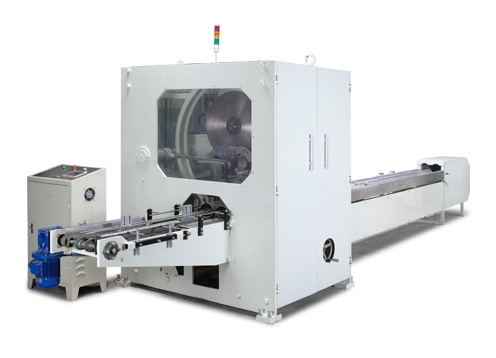

Automatic Dual-Channel High-Speed Tissue Log Saw

Features

・ Double log cutting - Blade safety cabin

・ Automatic blade sharpening system

・ Automatic blade adjustment on the cutting level

・ Automatic stop in case of misplacement or over o of log

・ Automatic stop in case cabin door are open

・ Two stainless steel feed channels

・ Log in feed by servo motor

・ Log pusher controller by a servomotor, which provide the right cutting length.

・ Servo disk brake

・ Superior timing tension rubber belts for the driving system

・ Pneumatic trim removal system

Technical Features

・ Paper log length: max 2750 mm. (modified upon request)

・ Electronic cutting length control: variable within 90 – 250 mm.

・ Minimum trim cutting length: 25 mm at each end.

・ Log diameter: min. 95 mm. , max. 140 mm.

・ Maximum operation speed: 120 cut / cycles / min * 2 rolls

・ Grinding wheel: diamond,

・ The sharpening can be adjusted to follow the edge of the disk

・ Circular Blade diameter: 610 mm. -

・ Variable speed control

・ Clamps set before & after the disk, which fix the log during the cutting process.

・ The clamps diameter can be adjusted mechanically

・ Mitsubishi PLC Control System – Touch Screen operation

・ Power Supply: 380 V. 3 phases, 50 Hz, 24 V DC control, 8 Kw.
