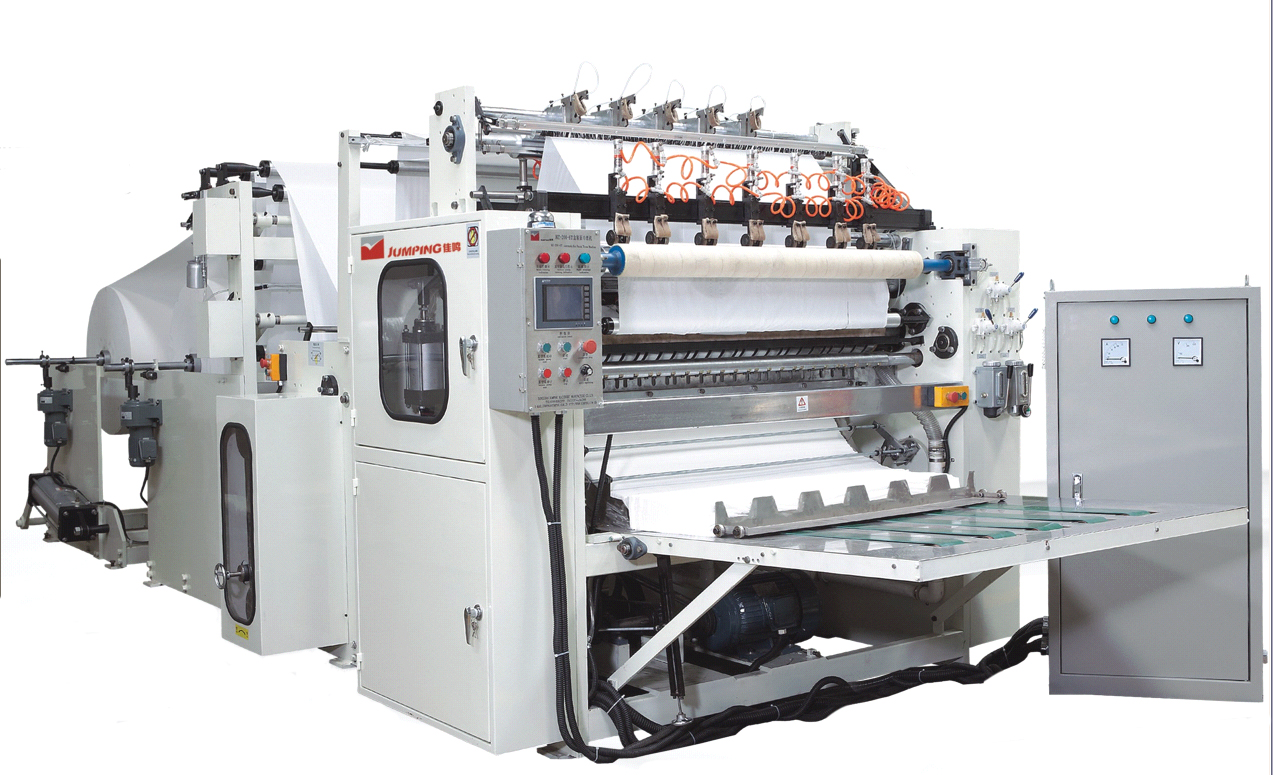

Automatic Box Packing Facial Tissue Machine (4 lanes)

1.       Parent roll

(1)    Basis weight: 13~20 g/m2 double plies tissue, 18~22g/m2 single ply tissue, 13~15g/m2 three plies tissue;

(2)    Diameter: <= 1200mm;

(3)    Paper core dia.: 76mm;

(4)    Width: Max. 800mm;

2.       Product specification

(1)    Horizontal cutting length: 200mm;

(2)    Vertical cutting length: 170~200mm (adjustable);

(3)    Equipped with 4 slitting cutter;

(4)    Embossing: the pattern will be provided by the customer;

(5)    Can produce products without embossing;

3.       Unwinding section

(1)    Two parent roll shafts which can clip the paper core firmly;

(2)    Equipped with electric positioning device which can adjust the position of the parent rolls;

(3)    Tension control system can adjust the tension of the parent paper;

(4)    Pneumatic loading system;

(5)    The unwinding belt is adjusted pneumatically, when the parent paper is out the machine will slow down to stop;

(6)    All the pneumatic device’s air press are adjustable;

(7)    Perfuming system;

4.       embossing unit;

(1)    Steel to paper embossing ( two sets);

(2)    The two rollers can be separate to produce products without embossing;

(3)    The steel rollers were plated with hard chrome, the embossing is very clear;

(4)    Tension adjusting device;

(5)    Broken, winding can effect the automatic stop function;

(6)    Counting system;

(7)    Speed: 800-1000 sheets/min per lane, 3200-4000sheets/min (4 lanes)

(8)    Frequency Conversion timing system;
