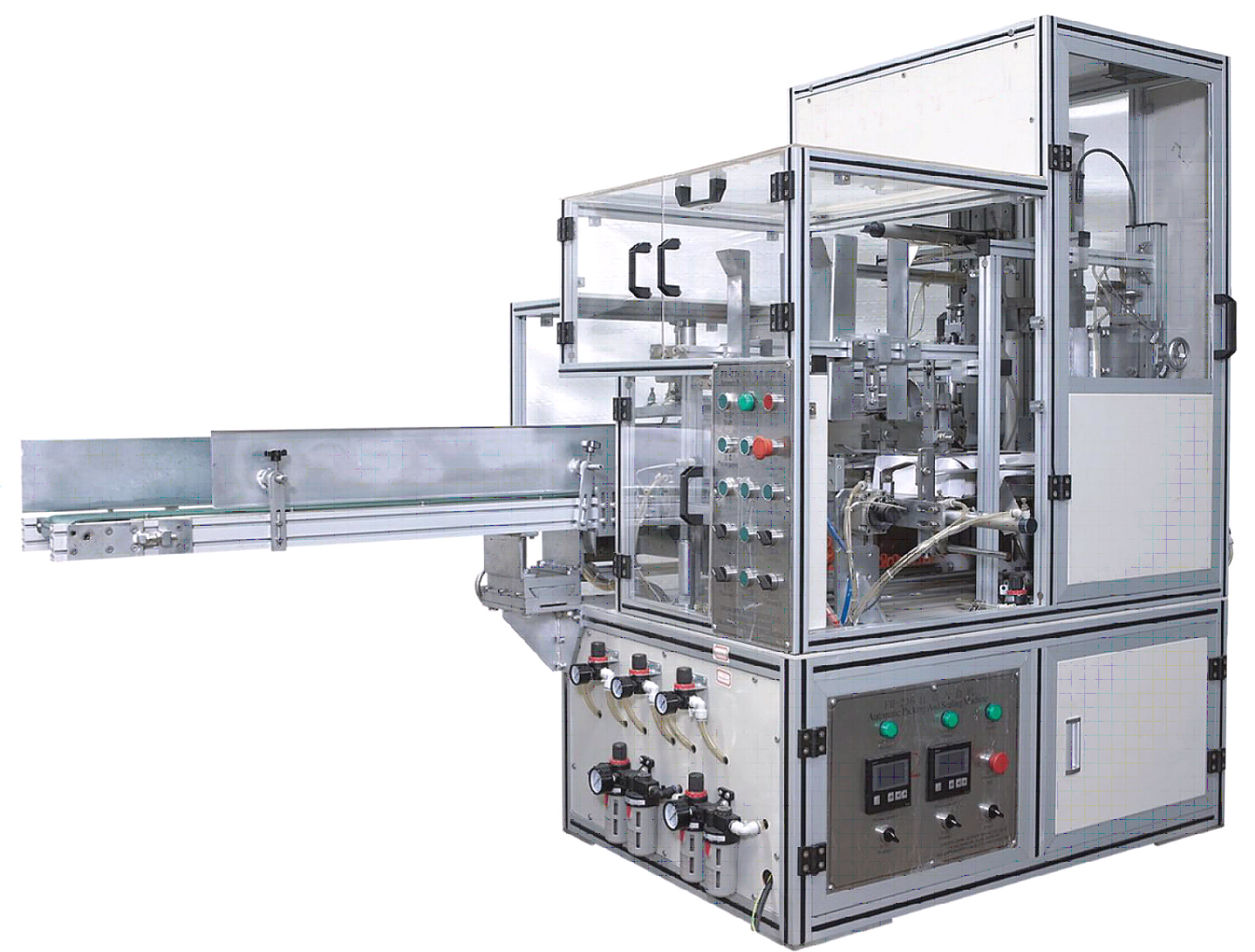

Automatic box packing and sealing machine

Automatic packing and sealing machine is an auxiliary equipment of facial tissue in feed and box sealing, it is easy to operate whether working in the production line or working independently. This machine adopts the technology of PLC computer programming. The facial tissue are put on the conveyor and will be put into the box automatically after passing the auto feeding, gluing and sealing system, it save a lot of labor compare with semi-automatic type machine.

1.    Box size:              Length:100-240mm  Width:100-120mm  Height:50-110mm

                          Boxes:350-400g/m2

2.    Applicable adhesive   Hot melt glue

3.    Glue melting device   Copper stove, temperature adjustable

4.    Control system        Electro-magnetic clutch paper feeding and PLC program control

5.    Processing capability:  25-30 boxes/min. (steady running);

6.    Voltage:               380V/50Hz

7.    Air pressure needed:   0.5 Mpa; (provided by the customer)

8.    Machine dimension:    2723x1800x1810 mm
