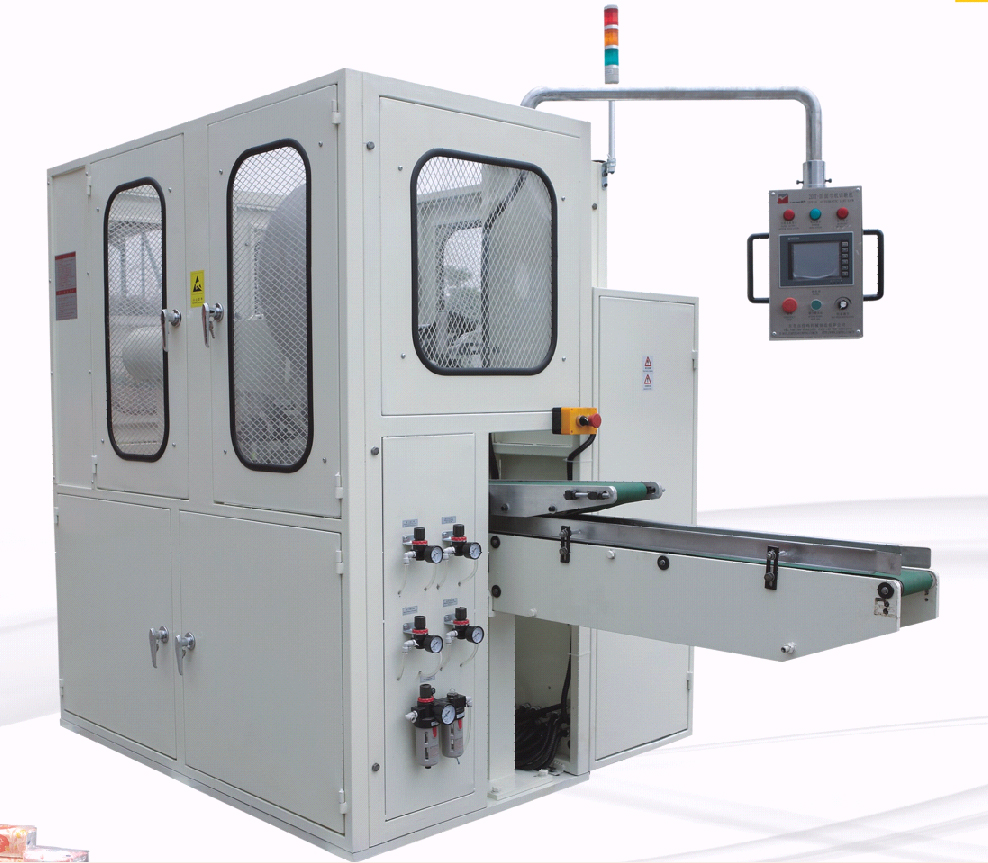

2BP-II Intelligent Servo-Driven Facial Tissue Cutting System

Machine introduction

2BP-II Facial tissue cutting machine was developed to substitute for dotted line slitting which has not so smooth cutting ends and also highly depends on labor force.

Our facial tissue cutting machine adopts intelligent servo system to control infeed and cutting process. Over ten years of improvement and innovation, our machine has reached the international advanced level in terms of cutting speed and precision, enjoying good reputation.

Features

1 Connection your interfolder and packing machines to make a complete production line, saved labor cost and increased efficiency

2 Quality:a. smooth cutting ends

        b. cutting tolerance less than ±1mm

3 Servo drive, PLC control, touch screen setting, flexibly adjustable

4 Production speed:150-220cuts/min

5 Safety: a. program control,auto detecting, and fault stop

        b.built-in mesh safety guards

        c.safety door

Technical parameters

Model: 2BP-II

Cutting precision: ±1mm

Infeed material size: Width: 45-120mm (adjustable)

                Height:30-140mm(adjustable)

                Length:50-2800mm (servo tracking, adjustable)

Infeed material: Facial tissue or paper towel

Control system: Servo drive, PLC control, and touch screen display

Sharpening system:Auto sharpening,setting shargening time

Lubrication:Oil fog spray, setting time in touch screen

Circular blade: ф610mm

Blade holder position adjustment:Touch screen control

Dust removal:Fan removing dust of the grind wheel and reducing heat

Power needed: AC380V 50Hz 8Kw

Air pressure:0.5Mpa(buyer prepares)

Production speed:150-220cuts/min

Optional part

Interfodler: Assemble a production line

Plastic film wrapping machine: Assemble a production line

Box packing machine: Assemble a production line
