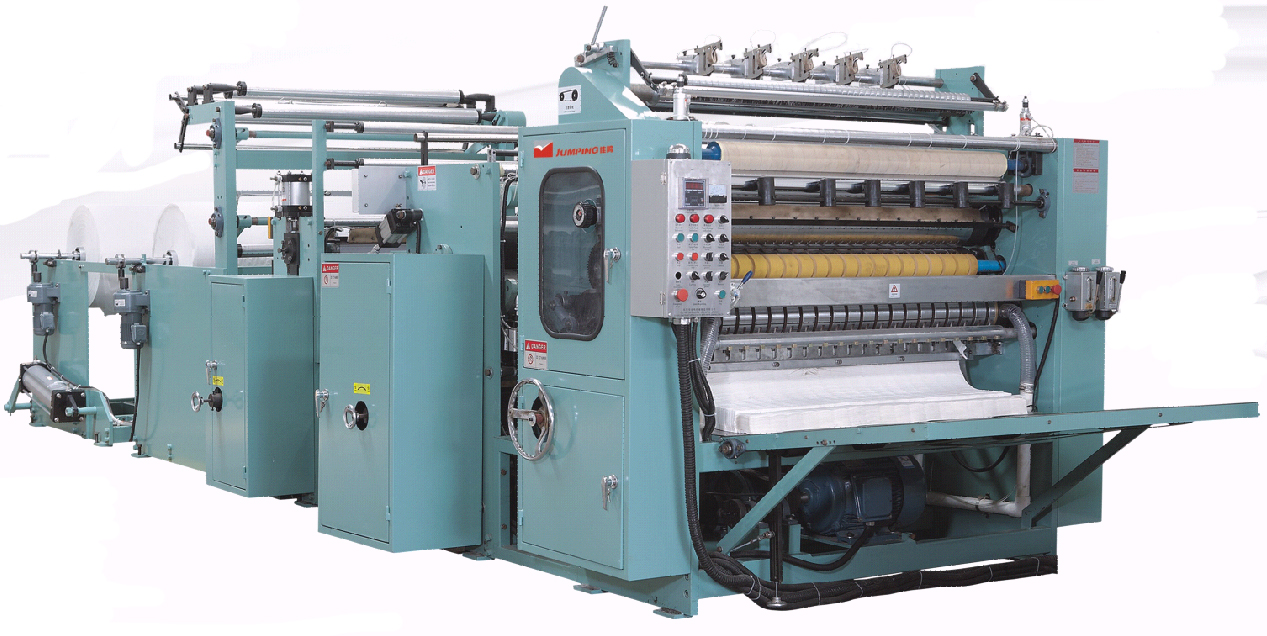

190m/min Automatic N-Fold Interfolder with Patented Cutting Technology

Machine introduction

BP-N hand towel machine produces premium N-fold paper towel; Auto control and detecting; it was developed to operator friendly, and highly efficient. The converting products quality has reached the international advanced level.

Features

1 Glue lamination: fully automatic glue-scraping system ensures even gluing and flexible operation;

2 Paper GSM:in the range of 23-45g;

3 Auto web guide for jumbo rolls, reduced defect rate;

4 Wide belt feeding paper synchronously, auto web tension control for each jumbo roll;

5 Pioneering Patented cutting technologh, completely cutting off and making the baldes life time longer;

6 Emboss roller engraved by the most advanced Germany systm,clear pattern and highly bulky;

7 Production speed of 190m/min.

Technical parameters

Model:BP-N

Applicable jumbo roll:18-25g/m² double-ply paper, 35-48g/m² single-ply paper

Jumbo roll width:710-1400mm

Jumbo roll diameter: ф1200-1500mm

Jumbo roll core diameter: ф76-152mm

Cross cutting size:225mm,230mm,240±1mm

Longitudinal cutting size:Adjustable

Folding system:Vacuum absorption folding

Counting device:Auto counting by ink mark

Controlling system:Frequency speed, PLC control and magic eye detecting

Power needed: AC380V 50Hz5.5-7.5Kw(main motor) 15-22Kw(Vacuum pump)

Paper feeding system:1-2 unwind stand, buffering cylinder control

Production soeed:190m/min (speed depends on jumbo roll quality)

Air pressure:0.5Mpa(buyer prepares)

Optional part

Slitting device:Dot-line slitting

Packaging Assisting packaging machine + band saw

Printing:1-2 colors
